UV Gas Analyzer

DOAS-M1

Photonics Technology Obninsk, Ltd.
presents the enhanced

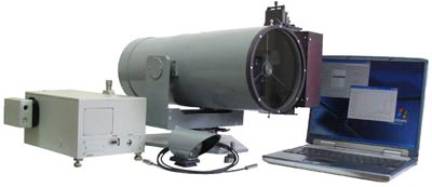

Ultra-Violet Open Path Gas Analyzer DOAS‑M1,
compact, with additional operator facilities

For the atmospheric air gas pollutants monitoring



Advantages and characteristics :

¾             Detects and measures concentrations of 38 gases with  high accuracy and sensitivity
at the level of units of ppbv

¾             Single measurement time is from 30 sec to 3 min, SIMULTANEOUSLY measures up to 33 gases

¾             Optical method of measurements (spectrum analysis)
 does not require air sampling and chemical reagents

¾             Small passive  reflector (which does not require power supply and maintenance) is placed 20-200 ì away from the telescope and the light source; the data are processed in the analyzer and shown on a display of the computer as tables and charts.

¾             DOAS-M1 measures averaged along the path concentrations of gases, that are transported from pollution sources to residential areas

¾             DOAS-M1 is easy to use in mobile systems
(weight of the telescope is 22 kg, analyzer – 8kg, reflector- 0.3 kg)

¾             DOAS-M1 can be used in ecological monitoring systems for continuous automated real-time measurements;  continuous operating time depends on service time of the interchangeable xenon lamp (up to 2 months)



38 gases detected by DOAS-M1 and their detection thresholds (DT)

Formula

Name

DT, ppb



Formula

Name

DT, ppb

NH3

ammonia





C8H10O

2,3-dimethylphenol (2,3-xylenol)

1.2

NO

nitric oxide





2,4- dimethylphenol (2,4- xylenol)

1.4

NO2

nitrogen dioxide

2.8



2,5- dimethylphenol (2,5- xylenol)

1.6

NOHO

nitrous oxide

1.1



2,6- dimethylphenol (2,6- xylenol)

2.8

3,4- dimethylphenol (3,4- xylenol)

1.2

SO2

sulfur dioxide

0.8



3,5- dimethylphenol (3,5- xylenol)

0.4

O3

ozone

1.4







CH2O

formaldehyde

3.4



C9H13O

2,4,6-trimethylphenol

7.4

C6H6

benzene

0.8



C9H12

1,2,4-trimethylbenzene

3.2

C7H8

toluene

3.6



1,3,5- trimethylbenzene (mesitylene)

6.0

C6H6O

phenol

0.2



C8H8O

o- toluylaldehyde

0.8

C7H6O

benzaldehyde

0.5



m- toluylaldehyde

1.0

C8H10

ethylbenzene

3.8



p- toluylaldehyde

0.3

styrene (vinylbenzene)





CS2

carbon bisulfide

9.0

C8H10

o-xylene

8.0



OClO

chlorine dioxide

0.03

m-xylene

4.0



IO

iodine dioxide

0.2

p-xylene

1.0



BrO

bromine dioxide



C7H8O

o-cresol

2.0



CH3COCHO

methylglyoxal

0.2

m-cresol

0.8



CH2C(CH3)CHO

metacrolein

16

p-cresol

0.2



CH2CHCHCH2

1,3- butadiene(divinyl)
